M60XG

Nowadays, air conditioning is very popular in modern living; however, ceiling fans are still beneficial for human life. Ceiling fans not only create wide span of airflow for cooling effect, but also help the circulation of cool air generated by air conditioning system in the room By the pursuit of higher quality of life, ceiling fans are expected to have more funtions and value added features. When you select a ceiling fan, safety and reliability would be one of the major concerns

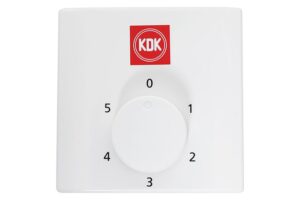

• Compact size condenser controlled regulator
• 5-speed selection
• Thermal fuse prevent overheating of power surge
• Safety wire provided and Cut-off safety switch equipped
• Fall prevention of blade adopted
• Permantly lubricated ball-bearing assembly

Newly developed direct current (DC) motor are adopted in these fans. Power consumption is reduced as compared with alternative current (Ac) motor that energy saving is achieved Dc motor has lighter weight compared with conventional AC motor, that allows easy handling for Dc ceiling fan. Our aim is to minimize and reduce the accidents that may lead human injury; thus, the safety policy by KDK must be carried out to prevent any dangerous accident Specifications

Model	Voltage				R.P.M	Air Velocity		Air Delivery		Weight
	[V]	[Hz]	*	Consumption [W]		[m/min]	[ft/min]	[m³/min]	[ft³/min]	[kg]
M60XG	220	50	High	63	217	145	476	215	7593	6.1
			Low	16	92	—	—	—	—
	220	60	High	78	234	155	509	225	7964
			Low	16	92	—	—	—	—
